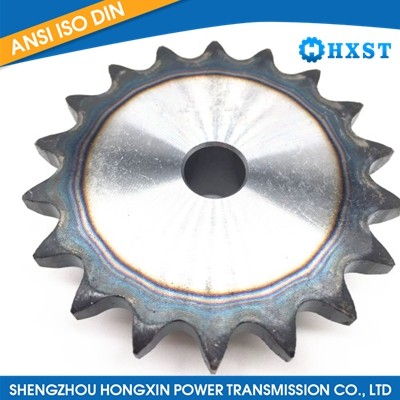

140A-1 Plate Wheel Sprocket
  1. 140A-1 Plate Wheel Sprocket

140A-1 Plate Wheel Sprocket

Product Item:HXPT-134

Model:140A-1 Plate Wheel Sprocket

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

140A-1 Plate Wheel Sprocket
Send Inquiry Live chat

Description

Product details

Chain Pitch (P) 44.45 mm (1-3/4 inch)
Inner Width (W) 25.22 mm
Bush Dia. (Dr) 25.40 mm
Tooth Width (T) 23.5 mm
(Dimension : mm)
Sprocket No. Outside Dia.
Do
Pitch Dia.
Dp
Bore Dia. d Weight
(kg)
Material Teeth
Type Teeth Stock Bore Min.
K140A 10 163 143.84 26 28 2.90 Mild Steel 10
11 178 157.78 26 28 3.60 11
12 193 171.74 26 28 4.20 12
13 207 185.74 26 28 4.90 13
14 221 199.76 26 28 5.70 14
15 236 213.79 26 28 6.60 15
16 250 227.84 26 28 7.50 16
17 264 241.91 26 28 8.40 17
18 279 255.98 26 28 9.40 18
19 293 270.06 26 28 10.50 19
20 307 284.15 26 28 11.60 20
21 322 298.24 26 28 12.80 21
22 336 312.34 26 28 14.10 22
23 350 326.44 26 28 15.30 23
24 364 340.54 26 28 16.70 24
25 379 354.65 26 28 18.10 25
26 393 368.77 26 28 19.60 26
28 421 397.00 26 28 23.00 28
30 450 425.24 26 28 26.00 30
32 478 453.49 26 28 29.70 32
35 521 495.88 26 28 35.60 35
38 563 538.27 26 28 41.90 38
40 591 566.54 26 28 46.40 40
42 620 594.81 26 28 51.10 42
45 662 637.22 26 28 58.80 45
48 705 679.63 26 28 66.90 48
50 733 707.91 26 28 72.50 50
54 790 764.47 26 28 84.60 54
60 875 849.32 26 28 104.00 60
