Продукт Товар:HXPT-210

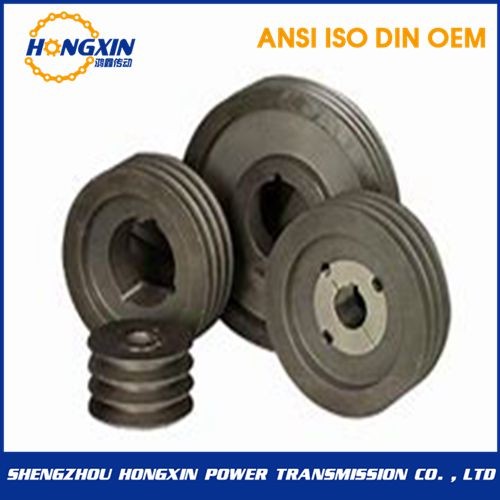

Model:SPB-10 Taper Bore Pulley
Material: C45, stainless steel, etc.
Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc
Package:Standard export case, individual package (neutral or colorbox) available.
| PART NO. | P.D | O.D | TYPE | BUSH NO. | MAX BORE | E | F | J | K | L | M | N |
| spb 224-10 | 224.0 | 231.0 | 3 | 3535 | 90 | - | 196 | 181 | 53.5 | 89 | 53.5 | - |
| spb 236-10 | 236.0 | 243.0 | 3 | 3535 | 90 | - | 196 | 193 | 53.5 | 89 | 53.5 | - |
| spb 250-10 | 250.0 | 257.0 | 3 | 3535 | 90 | - | 196 | 207 | 53.5 | 89 | 53.5 | - |
| spb 280-10 | 280.0 | 287.0 | 3 | 3535 | 90 | - | 196 | 237 | 53.5 | 89 | 53.5 | - |
| spb 315-10 | 315.0 | 322.0 | 6 | 3535 | 90 | 18 | 196 | 272 | 53.5 | 89 | 53.5 | 170 |
| spb 335-10 | 335.0 | 342.0 | 6 | 4040 | 100 | 20 | 196 | 292 | 47 | 102 | 47 | 200 |
| spb 355-10 | 355.0 | 362.0 | 6 | 4040 | 100 | 20 | 196 | 312 | 47 | 102 | 47 | 200 |
| spb 400-10 | 400.0 | 407.0 | 5 | 4040 | 100 | - | 196 | 357 | 47 | 102 | 47 | 200 |
| spb 450-10 | 450.0 | 457.0 | 5 | 4545 | 110 | - | 196 | 407 | 41 | 114 | 41 | 225 |
| spb 500-10 | 500.0 | 507.0 | 5 | 4545 | 110 | - | 196 | 457 | 41 | 114 | 41 | 225 |
| spb 560-10 | 560.0 | 567.0 | 5 | 4545 | 110 | - | 196 | 517 | 41 | 114 | 41 | 225 |
| spb 630-10 | 630.0 | 637.0 | 5 | 4545 | 110 | - | 196 | 587 | 41 | 114 | 41 | 225 |
| spb 710-10 | 710.0 | 717.0 | 5 | 4545 | 110 | - | 196 | 664 | 41 | 114 | 41 | 225 |
| spb 800-10 | 800.0 | 807.0 | 5 | 4545 | 110 | - | 196 | 754 | 41 | 114 | 41 | 225 |
| spb 900-10 | 900.0 | 907.0 | 5 | 5050 | 125 | - | 196 | 854 | 34.5 | 127 | 34.5 | 245 |
| spb 1000-10 | 1000.0 | 1007.0 | 5 | 5050 | 125 | - | 196 | 954 | 34.5 | 127 | 34.5 | 245 |
