Продукт Товар:HXPT-235

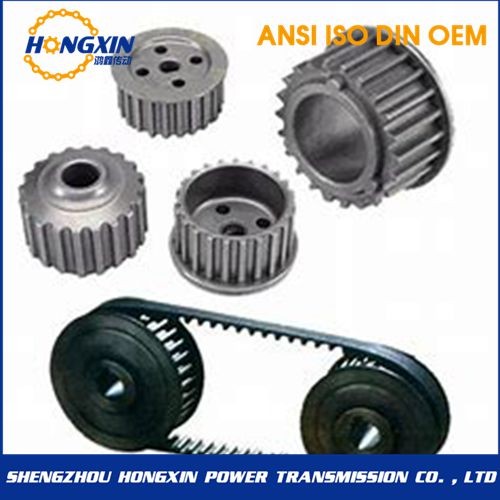

Model:L100 Timing Pulley
Material: C45, stainless steel, etc.
Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc
Package:Standard export case, individual package (neutral or colorbox) available.
| SPC | TYPE | Z | De | Dp | Df | Dm | F | L | d |
| 10L100 | 1 | 10 | 29.56 | 30.33 | 37 | 20 | 31.8 | 45 | 8 |
| 11L100 | 1 | 11 | 32.59 | 33.35 | 37 | 24 | 31.8 | 45 | 8 |
| 12L100 | 1 | 12 | 35.62 | 36.37 | 43 | 24 | 31.8 | 45 | 8 |
| 13L100 | 1 | 13 | 38.65 | 39.41 | 43 | 28 | 31.8 | 45 | 8 |
| 14L100 | 1 | 14 | 41.68 | 42.44 | 48 | 28 | 31.8 | 45 | 10 |
| 15L100 | 1 | 15 | 44.72 | 45.48 | 51 | 34 | 31.8 | 45 | 10 |
| 16L100 | 1 | 16 | 47.75 | 48.51 | 54 | 36 | 31.8 | 45 | 10 |
| 17L100 | 1 | 17 | 50.78 | 51.54 | 57 | 36 | 31.8 | 45 | 10 |
| 18L100 | 1 | 18 | 53.81 | 54.59 | 60 | 40 | 31.8 | 45 | 10 |
| 19L100 | 1 | 19 | 56.84 | 57.61 | 63 | 40 | 31.8 | 45 | 10 |
| 20L100 | 1 | 20 | 59.88 | 60.63 | 67 | 40 | 31.8 | 45 | 10 |
| 21L100 | 1 | 21 | 62.91 | 63.68 | 70 | 45 | 31.8 | 45 | 10 |
| 22L100 | 1 | 22 | 65.94 | 66.70 | 75 | 45 | 31.8 | 45 | 12 |
| 23L100 | 1 | 23 | 68.97 | 69.73 | 79 | 55 | 31.8 | 45 | 12 |
| 24L100 | 1 | 24 | 72 | 72.77 | 79 | 55 | 31.8 | 45 | 12 |
| 25L100 | 1 | 25 | 75.04 | 75.80 | 83 | 58 | 31.8 | 45 | 12 |
| 26L100 | 1 | 26 | 78.07 | 78.84 | 87 | 58 | 31.8 | 45 | 12 |
| 27L100 | 1 | 27 | 81.1 | 81.86 | 91 | 58 | 31.8 | 45 | 12 |
| 28L100 | 1 | 28 | 84.13 | 84.89 | 91 | 58 | 31.8 | 45 | 12 |
| 30L100 | 1 | 30 | 90.2 | 90.96 | 97 | 70 | 31.8 | 45 | 12 |
| 32L100 | 1 | 32 | 96.26 | 97.03 | 102 | 70 | 31.8 | 45 | 12 |
| 33L100 | 1 | 33 | 99.29 | 100.05 | 112 | 70 | 31.8 | 45 | 12 |
| 34L100 | 1 | 34 | 102.32 | 103.08 | 115 | 70 | 31.8 | 45 | 12 |
| 35L100 | 1 | 35 | 105.35 | 106.12 | 115 | 70 | 31.8 | 45 | 12 |
| 36L100 | 1 | 36 | 108.39 | 109.14 | 120 | 70 | 31.8 | 45 | 12 |
| 40L100 | 1 | 40 | 120.5 | 121.29 | 128 | 70 | 31.8 | 45 | 12 |
| 42L100 | 1 | 42 | 126.57 | 127.34 | 135 | 70 | 31.8 | 45 | 12 |
| 44L100 | 1 | 44 | 132.64 | 133.40 | 142 | 70 | 31.8 | 45 | 12 |
| 45L100 | 1 | 45 | 135.67 | 136.44 | 142 | 70 | 31.8 | 45 | 12 |
| 48L100 | 1 | 48 | 144.77 | 145.54 | 150 | 70 | 31.8 | 45 | 12 |
| 50L100 | 3 | 50 | 150.83 | 151.60 | - | 70 | 31.8 | 45 | 14 |
| 52L100 | 3 | 52 | 156.9 | 157.66 | - | 70 | 31.8 | 45 | 14 |
| 56L100 | 3 | 56 | 169.02 | 169.79 | - | 70 | 31.8 | 45 | 14 |
| 57L100 | 3 | 57 | 172.06 | 172.82 | - | 70 | 31.8 | 45 | 14 |
| 60L100 | 3 | 60 | 181.15 | 181.92 | - | 75 | 31.8 | 45 | 14 |
| 68L100 | 4 | 68 | 205.41 | 206.17 | - | 75 | 31.8 | 45 | 14 |
| 72L100 | 4 | 72 | 217.53 | 218.29 | - | 75 | 31.8 | 45 | 14 |
| 84L100 | 4 | 84 | 253.92 | 254.69 | - | 75 | 31.8 | 45 | 14 |
| 96L100 | 4 | 96 | 290.3 | 291.06 | - | 75 | 31.8 | 45 | 14 |
