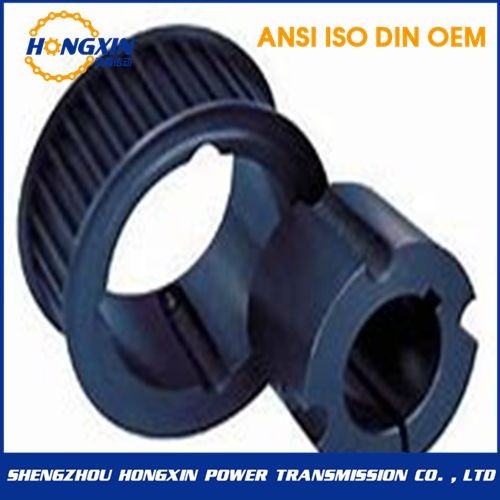

HTP 14M-170 Taper Bore Timing Pulley

Продукт Товар:HXPT-282

Model:HTP 14M-170 Taper Bore Timing Pulley

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

14M
PITCH - 14 mm
FOR BELT WIDTH - 170 mm

Code	Type	Material	Teeth	Buss	Hole max	dp	de	Df	Dm	Di	F	L	R	n◦ flange
Code	Type	Material	Teeth	Buss	Hole max	dp	de	Df	Dm	Di	F	L	R	n◦ flange
TL 38 14M 170	18F	St	38	3030	75	169,34	166,60	183			187	76	55,5	406
TL 40 14M 170	18F	St	40	3030	75	178,25	175,49	188			187	76	55,5	407
TL 44 14M 170	18F	St	44	3535	90	196,08	193,28	211			187	89	49	411
TL 48 14M 170	18F	St	48	3535	90	213,90	211,11	226			187	89	49	412
TL 56 14M 170	18F	St	56	3535	90	249,55	246,76	256			187	89	49	416
TL 64 14M 170	18F	GG	64	4040	100	285,21	282,41	296			187	102	42,5	418
TL 72 14M 170	19	GG	72	4040	100	320,86	318,06		230		187	102	42,5
TL 80 14M 170	19	GG	80	4040	100	356,51	353,71		230		187	102	42,5
TL 90 14M 170	20	GG	90	4040	100	401,07	398,28		230		187	102	42,5
TL 112 14M 170	20	GG	112	5050	125	499.11	496.32		265		187	127	30
TL 144 14M 170	20	GG	144	5050	125	641.71	638.92		265		187	127	30
TL 168 14M 170	20	GG	168	5050	125	748.66	745.87		265		187	127	30
TL 192 14M 170	20	GG	192	5050	125	855.62	852.82		265		187	127	30
