Продукт Товар:HXPT-259

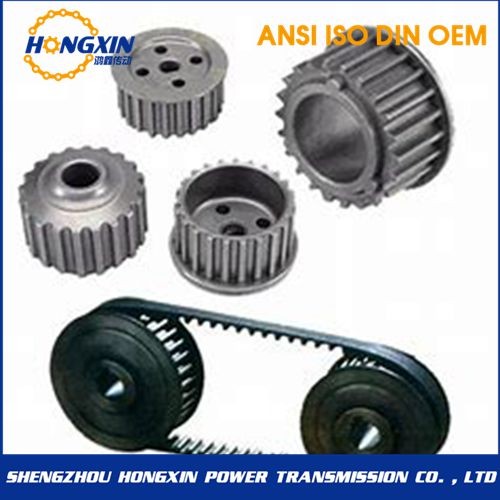

Model:HTP 5M-25 Timing Pulley
Material: C45, stainless steel, etc.
Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc
Package:Standard export case, individual package (neutral or colorbox) available.
| SPC | TYPE | Z | Dp | De | Df | Dm | F | L | d |
| 12-5M-25 | 2F | 12 | 19.1 | 17.96 | 23 | 13.0 | 30.5 | 36 | 6 |
| 14-5M-25 | 2F | 14 | 22.28 | 21.14 | 25 | 14.0 | 30.5 | 36 | 6 |
| 15-5M-25 | 2F | 15 | 23.87 | 22.73 | 28 | 16.0 | 30.5 | 36 | 6 |
| 16-5M-25 | 2F | 16 | 25.46 | 24.32 | 28 | 16.5 | 30.5 | 36 | 6 |
| 18-5M-25 | 2F | 18 | 28.65 | 27.51 | 32 | 20.0 | 30.5 | 36 | 6 |
| 20-5M-25 | 2F | 20 | 31.83 | 30.69 | 37 | 23.0 | 30.5 | 36 | 6 |
| 21-5M-25 | 2F | 21 | 33.42 | 32.28 | 38 | 24.0 | 30.5 | 36 | 6 |
| 22-5M-25 | 2F | 22 | 35.01 | 33.87 | 38 | 25.5 | 30.5 | 36 | 6 |
| 24-5M-25 | 2F | 24 | 38.2 | 37.06 | 43 | 27.0 | 30.5 | 36 | 6 |
| 26-5M-25 | 2F | 26 | 41.38 | 40.24 | 44 | 30.0 | 30.5 | 36 | 6 |
| 28-5M-25 | 2F | 28 | 44.56 | 43.42 | 48 | 30.5 | 30.5 | 36 | 6 |
| 30-5M-25 | 2F | 30 | 47.75 | 46.60 | 51 | 35.0 | 30.5 | 36 | 6 |
| 32-5M-25 | 2F | 32 | 50.93 | 49.79 | 54 | 38.0 | 30.5 | 36 | 8 |
| 36-5M-25 | 2F | 36 | 57.3 | 56.16 | 60 | 38.0 | 30.5 | 36 | 8 |
| 40-5M-25 | 2F | 40 | 63.66 | 62.52 | 70 | 38.0 | 30.5 | 36 | 8 |
| 44-5M-25 | 2 | 44 | 70.03 | 68.89 | - | 38.0 | 30.5 | 40 | 8 |
| 48-5M-25 | 4 | 48 | 76.39 | 75.25 | - | 38.0 | 30.5 | 40 | 8 |
| 60-5M-25 | 4 | 60 | 95.49 | 94.35 | - | 50.0 | 30.5 | 40 | 8 |
| 72-5M-25 | 4 | 72 | 114.59 | 113.45 | - | 50.0 | 30.5 | 40 | 8 |
