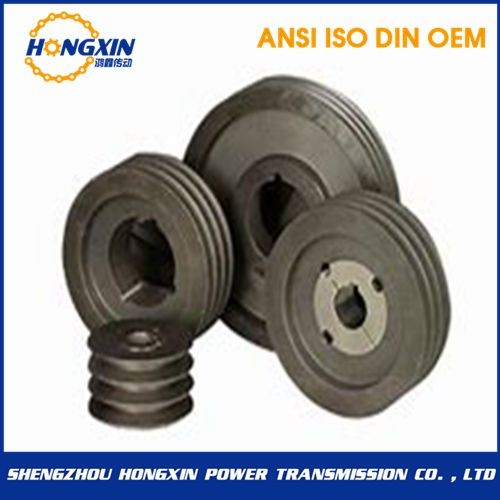

SPZ-5 Taper Bore Pulley
  1. SPZ-5 Taper Bore Pulley

SPZ-5 Taper Bore Pulley

Продукт Товар:HXPT-221

Model:SPZ-5 Taper Bore Pulley

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

SPZ-5 Taper Bore Pulley
Отправить запрос Живой чат

Описание

Product details

TAPER BORE PULLEYS SPZ-5

SPZ-5

PART NO. P.D O.D TYPE BUSH NO. MAX BORE E F J K L M N
spz 85-5 85.0 89.0 8 1610 42 - 64 60 39 25 - -
spz 90-5 90.0 94.0 8 1610 42 - 64 61 39 25 - -
spz 95-5 95.0 99.0 8 1610 42 - 64 66 39 25 - -
spz 100-5 100.0 104.0 8 2012 50 - 64 72 32 32 - -
spz 106-5 106.0 110.0 8 2012 50 - 64 78 32 32 - -
spz 112-5 112.0 116.0 8 2012 50 - 64 84 32 32 - -
spz 118-5 118.0 122.0 8 2012 50 - 64 90 32 32 - -
spz 125-5 125.0 129.0 8 2012 50 - 64 97 32 32 - -
spz 132-5 132.0 136.0 8 2517 60 - 64 104 19 45 - -
spz 140-5 140.0 144.0 2 2517 60 - 64 112 - 45 19 -
spz 150-5 150.0 154.0 2 2517 60 - 64 122 - 45 19 -
spz 160-5 160.0 164.0 2 2517 60 - 64 132 - 45 19 -
spz 170-5 170.0 174.0 2 2517 60 - 64 141 - 45 19 -
spz 180-5 180.0 184.0 2 2517 60 - 64 152 - 45 19 -
spz 190-5 190.0 194.0 6 2517 60 10 64 161 9.5 45 9.5 120
spz 200-5 200.0 204.0 6 2517 60 10 64 172 9.5 45 9.5 120
spz 224-5 224.0 228.0 6 2517 60 10 64 196 9.5 45 9.5 120
spz 250-5 250.0 254.0 5 2517 60 - 64 222 9.5 45 9.5 120
spz 280-5 280.0 284.0 5 2517 60 - 64 252 9.5 45 9.5 120
spz 315-5 315.0 319.0 5 2517 60 - 64 287 9.5 45 9.5 120
spz 355-5 355.0 359.0 5 2517 60 - 64 326 9.5 45 9.5 120
spz 400-5 400.0 404.0 5 3020 75 - 64 371 6.5 51 6.5 150
spz 450-5 450.0 454.0 5 3020 75 - 64 421 6.5 51 6.5 150
spz 500-5 500.0 504.0 4 3030 75 - 64 471 6 76 6 150
spz 630-5 630.0 634.0 4 3030 75 - 64 601 6 76 6 150
spz 800-5 800.0 804.0 4 3535 90 - 64 771 12.5 89 12.5 170
