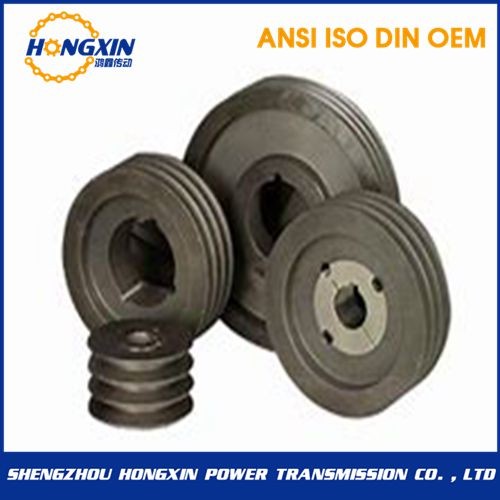

SPZ-4 Taper Bore Pulley
  1. SPZ-4 Taper Bore Pulley

SPZ-4 Taper Bore Pulley

Продукт Товар:HXPT-220

Model:SPZ-4 Taper Bore Pulley

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

SPZ-4 Taper Bore Pulley
Отправить запрос Живой чат

Описание

Product details

TAPER BORE PULLEYS SPZ-4

SPZ-4

PART NO. P.D O.D TYPE BUSH NO. MAX BORE E F J K L M N
spz 80-4 80.0 84.0 8 1210 32 - 52 51 27 25 - -
spz 85-4 85.0 89.0 8 1610 42 - 52 60 27 25 - -
spz 90-4 90.0 94.0 8 1610 42 - 52 61 27 25 - -
spz 95-4 95.0 99.0 8 1610 42 - 52 66 27 25 - -
spz 100-4 100.0 104.0 8 1610 42 - 52 72 27 25 - -
spz 106-4 106.0 110.0 8 1610 42 - 52 80 27 25 - -
spz 112-4 112.0 116.0 8 2012 50 - 52 86 20 32 - -
spz 118-4 118.0 122.0 8 2012 50 - 52 92 20 32 - -
spz 125-4 125.0 129.0 2 2012 50 - 52 99 20 32 20 -
spz 132-4 132.0 136.0 2 2012 50 - 52 104 20 32 20 -
spz 140-4 140.0 144.0 2 2012 50 - 52 112 7 32 20 -
spz 150-4 150.0 154.0 2 2517 60 - 52 122 7 45 7 -
spz 160-4 160.0 164.0 2 2517 60 - 52 132 - 45 7 -
spz 170-4 170.0 174.0 2 2517 60 - 52 141 - 45 7 -
spz 180-4 180.0 184.0 2 2517 60 - 52 152 - 45 7 -
spz 190-4 190.0 194.0 6 2517 60 10 52 161 3.5 45 3.5 120
spz 200-4 200.0 204.0 6 2517 60 10 52 172 3.5 45 3.5 120
spz 224-4 224.0 228.0 6 2517 60 10 52 196 3.5 45 3.5 120
spz 250-4 250.0 254.0 5 2517 60 - 52 222 3.5 45 3.5 120
spz 280-4 280.0 284.0 5 2517 60 - 52 252 3.5 45 3.5 120
spz 315-4 315.0 319.0 5 2517 60 - 52 287 3.5 45 3.5 120
spz 355-4 355.0 359.0 5 2517 60 - 52 326 3.5 45 3.5 120
spz 400-4 400.0 404.0 5 2517 60 - 52 371 3.5 45 3.5 120
spz 450-4 450.0 454.0 5 3020 75 - 52 421 0.5 51 0.5 150
spz 500-4 500.0 504.0 5 3020 75 - 52 471 0.5 51 0.5 150
spz 630-4 630.0 634.0 4 3030 75 - 52 601 12 76 12 150
spz 800-4 800.0 804.0 4 3030 75 - 52 771 12 76 12 150
