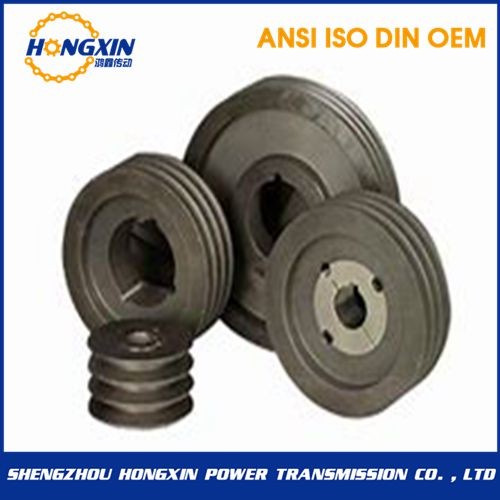

SPZ-3 Taper Bore Pulley
  1. SPZ-3 Taper Bore Pulley

SPZ-3 Taper Bore Pulley

Продукт Товар:HXPT-219

Model:SPZ-3 Taper Bore Pulley

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

SPZ-3 Taper Bore Pulley
Отправить запрос Живой чат

Описание

Product details

TAPER BORE PULLEYS SPZ-3

SPZ-3

PART NO. P.D O.D TYPE BUSH NO. MAX BORE E F J K L M N
spz 63-3 63.0 67.0 8 1108 28 - 40 40 18 22 -
spz 67-3 67.0 71.0 8 1108 28 - 40 42 18 22 - -
spz 71-3 71.0 75.0 8 1108 28 - 40 42 18 22 - -
spz 75-3 75.0 79.0 8 1210 32 - 40 48 15 25 - -
spz 80-3 80.0 84.0 8 1210 32 - 40 51 15 25 - -
spz 85-3 85.0 89.0 8 1610 42 - 40 60 15 25 - -
spz 90-3 90.0 94.0 8 1610 42 - 40 61 15 25 - -
spz 95-3 95.0 99.0 8 1610 42 - 40 66 15 25 - -
spz 100-3 100.0 104.0 8 1610 42 - 40 71 15 25 - -
spz 106-3 106.0 110.0 8 1610 42 - 40 78 15 25 - -
spz 112-3 112.0 116.0 8 2012 50 - 40 84 8 32 - -
spz 118-3 118.0 122.0 8 2012 50 - 40 92 8 32 - -
spz 125-3 125.0 129.0 2 2012 50 - 40 97 - 32 8 -
spz 132-3 132.0 136.0 2 2012 50 - 40 104 - 32 8 -
spz 140-3 140.0 144.0 2 2012 50 - 40 112 - 32 8 -
spz 150-3 150.0 154.0 2 2012 50 - 40 122 - 32 8 -
spz 160-3 160.0 164.0 2 2012 50 - 40 132 - 32 8 -
spz 170-3 170.0 174.0 2 2012 50 - 40 141 - 32 8 -
spz 180-3 180.0 184.0 2 2012 50 - 40 152 - 32 8 -
spz 190-3 190.0 194.0 6 2012 50 20 40 161 4 32 4 100
spz 200-3 200.0 204.0 6 2012 50 20 40 172 4 32 4 100
spz 224-3 224.0 228.0 6 2012 50 20 40 196 4 32 4 100
spz 250-3 250.0 254.0 5 2012 50 - 40 222 4 32 4 100
spz 280-3 280.0 284.0 4 2012 50 - 40 252 2.5 45 2.5 120
spz 315-3 315.0 319.0 4 2012 50 - 40 287 2.5 45 2.5 120
spz 355-3 355.0 359.0 4 2517 60 - 40 326 2.5 45 2.5 120
spz 400-3 400.0 404.0 4 2517 60 - 40 371 2.5 45 2.5 120
spz 450-3 450.0 454.0 4 2517 60 - 40 421 2.5 45 2.5 120
spz 500-3 500.0 504.0 4 2517 60 - 40 471 2.5 45 2.5 120
spz 630-3 630.0 634.0 4 2517 60 - 40 601 2.5 45 2.5 120
spz 800-3 800.0 804.0 4 3020 75 - 40 771 2.5 51 5.5 150
