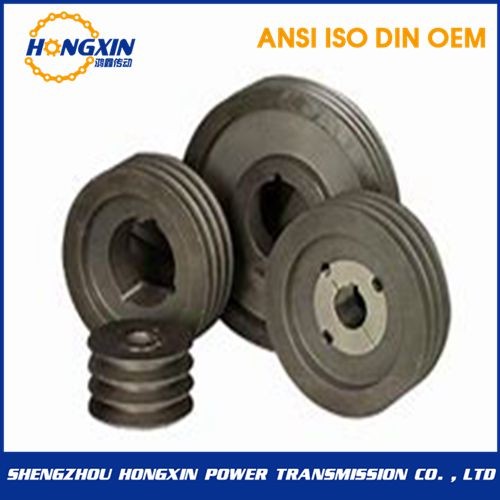

SPZ-2 Taper Bore Pulley
  1. SPZ-2 Taper Bore Pulley

SPZ-2 Taper Bore Pulley

Продукт Товар:HXPT-218

Model:SPZ-2 Taper Bore Pulley

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

SPZ-2 Taper Bore Pulley
Отправить запрос Живой чат

Описание

Product details

TAPER BORE PULLEYS SPZ-2

SPZ-2

PART NO. P.D O.D TYPE BUSH NO. MAX BORE E F J K L M N
spz 50-2 50.0 54.0 9 1008 25 - 49 28 27 22 - -
spz 56-2 56.0 60.0 9 1108 28 - 49 35 27 22 - -
spz 60-2 60.0 64.0 9 1108 28 - 49 36 27 22 - -
spz 63-2 63.0 67.0 8 1108 28 - 28 40 6 22 - -
spz 67-2 67.0 71.0 8 1108 28 - 28 42 6 22 - -
spz 71-2 71.0 75.0 8 1108 28 - 28 42 6 22 - -
spz 75-2 75.0 79.0 8 1210 32 - 28 51 3 25 - -
spz 80-2 80.0 84.0 8 1210 32 - 28 51 3 25 - -
spz 85-2 85.0 89.0 8 1610 42 - 28 60 3 25 - -
spz 90-2 90.0 94.0 8 1610 42 - 28 61 3 25 - -
spz 95-2 95.0 99.0 8 1610 42 - 28 66 3 25 - -
spz 100-2 100.0 104.0 8 1610 42 - 28 71 3 25 - -
spz 106-2 106.0 110.0 8 1610 42 - 28 76 3 25 - -
spz 112-2 112.0 116.0 8 1610 42 - 28 84 3 25 - -
spz 118-2 118.0 122.0 8 1610 42 - 28 90 3 25 - -
spz 125-2 125.0 129.0 8 1610 42 - 28 97 3 25 - -
spz 132-2 132.0 136.0 8 1610 42 - 28 104 3 25 - -
spz 140-2 140.0 146.0 8 1610 42 - 28 112 3 25 - -
spz 150-2 150.0 154.0 1 2012 50 - 28 - - 32 4 100
spz 160-2 160.0 164.0 1 2012 50 - 28 - - 32 4 100
spz 170-2 170.0 174.0 1 2012 50 - 28 - - 32 4 100
spz 180-2 180.0 184.0 7 2012 50 10 28 152 - 32 4 100
spz 190-2 190.0 194.0 7 2012 50 10 28 161 - 32 4 100
spz 200-2 200.0 204.0 7 2012 50 10 28 171 - 32 4 100
spz 224-2 224.0 228.0 7 2012 50 10 28 196 - 32 4 100
spz 250-2 250.0 254.0 4 2012 50 - 28 222 2 32 2 100
spz 280-2 280.0 284.0 4 2012 50 - 28 252 2 32 2 100
spz 315-2 315.0 319.0 4 2012 50 - 28 286 2 32 2 100
spz 355-2 355.0 359.0 4 2012 50 - 28 326 2 32 2 112
spz 400-2 400.0 404.0 4 2517 50 - 28 371 8.5 45 8.5 120
spz 450-2 450.0 454.0 4 2517 60 - 28 421 8.5 45 8.5 120
