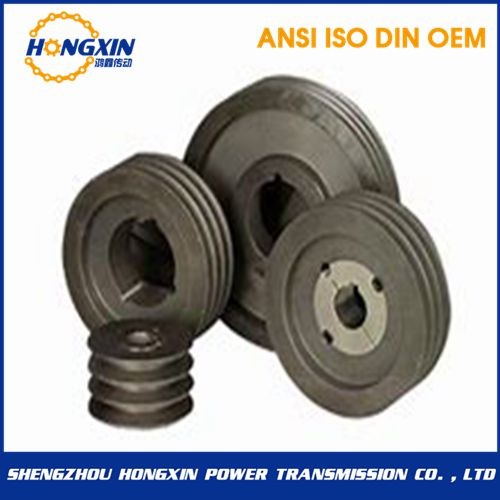

SPC-5 Taper Bore Pulley
  1. SPC-5 Taper Bore Pulley

SPC-5 Taper Bore Pulley

Продукт Товар:HXPT-213

Model:SPC-5 Taper Bore Pulley

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

SPC-5 Taper Bore Pulley
Отправить запрос Живой чат

Описание

Product details

TAPER BORE PULLEYS SPC-5

SPC-5

PART NO. P.D O.D TYPE BUSH NO. MAX BORE E F J K L M N
spc 200-5 200.0 209.6 3 3535 90 - 136 150 23.5 89 23.5 -
spc 212-5 212.0 221.6 3 3535 90 - 136 160 23.5 89 23.5 -
spc 224-5 224.0 233.6 3 3535 90 - 136 173 23.5 89 23.5 -
spc 236-5 236.0 245.6 3 3535 90 - 136 185 23.5 89 23.5 -
spc 250-5 250.0 259.6 3 3535 90 - 136 198 23.5 89 23.5 -
spc 265-5 265.0 274.6 3 3535 90 - 136 213 23.5 89 23.5 -
spc 280-5 280.0 289.6 3 3535 90 - 136 228 23.5 89 23.5 -
spc 300-5 300.0 309.6 6 3535 90 20 136 247 23.5 89 23.5 170
spc 315-5 315.0 324.6 6 3535 90 20 136 264 23.5 89 23.5 170
spc 335-5 335.0 344.6 6 3535 90 20 136 280 23.5 89 23.5 170
spc 355-5 355.0 364.6 6 3535 90 20 136 304 23.5 89 23.5 170
spc 375-5 375.0 384.6 6 3535 90 20 136 324 23.5 89 23.5 170
spc 400-5 400.0 409.6 5 3535 90 - 136 344 23.5 89 23.5 170
spc 425-5 425.0 434.6 5 4040 100 - 136 369 17 102 17 200
spc 450-5 450.0 459.6 5 4040 100 - 136 394 17 102 17 200
spc 475-5 475.0 484.6 5 4040 100 - 136 419 17 102 17 200
spc 500-5 500.0 509.6 5 4040 100 - 136 444 17 102 14 200
spc 530-5 530.0 539.6 5 4040 100 - 136 474 17 102 17 200
spc 560-5 560.0 569.6 5 4545 110 - 136 504 11 114 11 225
spc 630-5 630.0 639.6 5 5050 125 - 136 574 4.5 127 4.5 245
spc 710-5 710.0 719.6 5 5050 125 - 136 654 4.5 127 4.5 245
spc 800-5 800.0 809.6 5 5050 125 - 136 737 4.5 127 4.5 245
spc 1000-5 1000.0 1009.6 5 5050 125 - 136 937 4.5 127 4.5 245
spc 1250-5 1250.0 1259.6 5 5050 125 - 136 1187 4.5 127 4.5 245
