Продукт Товар:HXPT-200

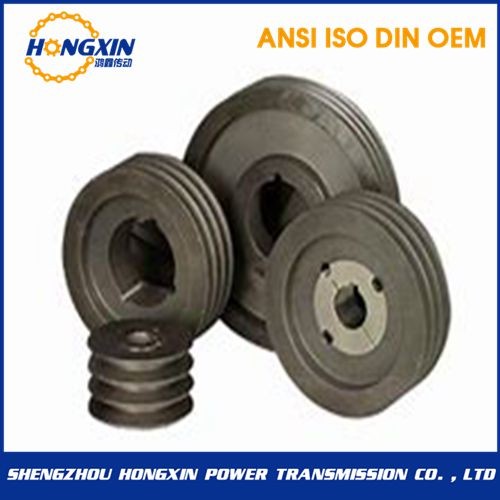

Model:SPA-4 Taper Bore Pulley
Material: C45, stainless steel, etc.
Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc
Package:Standard export case, individual package (neutral or colorbox) available.
| PART NO. | P.D | O.D | TYPE | BUSH NO. | MAX BORE | E | F | J | K | L | M | N |
| spa 90-4 | 90.0 | 95.5 | 3 | 1615 | 42 | - | 65 | 64 | 14 | 38 | 14 | - |
| spa 95-4 | 95.0 | 100.5 | 3 | 1615 | 42 | - | 65 | 64 | 14 | 38 | 14 | - |
| spa 100-4 | 100.0 | 105.5 | 2 | 1615 | 42 | - | 65 | 70 | - | 38 | 27 | - |
| spa 106-4 | 106.0 | 111.5 | 8 | 2012 | 50 | - | 65 | 76 | 33 | 32 | - | - |
| spa 112-4 | 112.0 | 117.5 | 8 | 2012 | 50 | - | 65 | 80 | 33 | 32 | - | - |
| spa 118-4 | 118.0 | 123.5 | 2 | 2012 | 50 | - | 65 | 86 | - | 32 | 33 | - |
| spa 125-4 | 125.0 | 130.5 | 2 | 2012 | 50 | - | 65 | 92 | - | 32 | 33 | - |
| spa 132-4 | 132.0 | 137.5 | 2 | 2517 | 60 | - | 65 | 98 | - | 45 | 20 | - |
| spa 140-4 | 140.0 | 145.5 | 2 | 2517 | 60 | - | 65 | 106 | - | 45 | 20 | - |
| spa 150-4 | 150.0 | 155.5 | 2 | 2517 | 60 | - | 65 | 116 | - | 45 | 20 | - |
| spa 160-4 | 160.0 | 165.5 | 2 | 2517 | 60 | - | 65 | 126 | - | 45 | 20 | - |
| spa 170-4 | 170.0 | 175.5 | 2 | 2517 | 60 | - | 65 | 138 | - | 45 | 20 | - |
| spa 180-4 | 180.0 | 185.5 | 2 | 2517 | 60 | - | 65 | 146 | - | 45 | 20 | - |
| spa 190-4 | 190.0 | 195.5 | 2 | 2517 | 60 | - | 65 | 158 | - | 45 | 20 | - |
| spa 200-4 | 200.0 | 205.5 | 2 | 3020 | 75 | - | 65 | 165 | - | 51 | 14 | - |
| spa 224-4 | 224.0 | 229.5 | 2 | 3020 | 75 | - | 65 | 189 | - | 51 | 14 | - |
| spa 250-4 | 250.0 | 255.5 | 6 | 3020 | 75 | 10 | 65 | 215 | 7 | 51 | 7 | 150 |
| spa 280-4 | 280.0 | 285.5 | 6 | 3020 | 75 | 10 | 65 | 245 | 7 | 51 | 7 | 150 |
| spa 315-4 | 315.0 | 320.5 | 6 | 3020 | 75 | 10 | 65 | 280 | 7 | 51 | 7 | 150 |
| spa 355-4 | 355.0 | 360.5 | 5 | 3020 | 75 | - | 65 | 320 | 7 | 51 | 7 | 150 |
| spa 400-4 | 400.0 | 405.5 | 5 | 3020 | 75 | - | 65 | 365 | 7 | 51 | 7 | 150 |
| spa 450-4 | 450.0 | 455.5 | 5 | 3020 | 75 | - | 65 | 415 | 7 | 51 | 7 | 150 |
| spa 500-4 | 500.0 | 505.5 | 5 | 3020 | 75 | - | 65 | 465 | 7 | 51 | 7 | 150 |
| spa 560-4 | 560.0 | 565.5 | 4 | 3535 | 90 | - | 65 | 525 | 12 | 89 | 12 | 170 |
| spa 630-4 | 630.0 | 635.5 | 4 | 3535 | 90 | - | 65 | 595 | 12 | 89 | 12 | 170 |
| spa 800-4 | 800.0 | 805.5 | 4 | 3535 | 90 | - | 65 | 765 | 12 | 89 | 12 | 170 |
| spa 1000-4 | 1000.0 | 1005.5 | 4 | 4040 | 100 | - | 65 | 965 | 19 | 102 | 19 | 216 |
