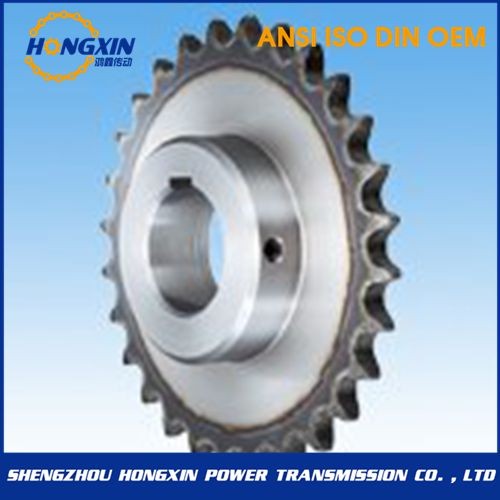

Звездочка с готовым отверстием NK 80B

Продукт Товар:HXPT-150

Модель: Звездочка с готовым отверстием NK 80B

Материал: C45, нержавеющая сталь и т. д.

Обработка поверхности: закаленные зубы, черный оксид, оцинковка, электрофорез и т. д.

Упаковка: стандартный экспортный ящик, индивидуальная упаковка. (нейтральный или цветной ящик) доступный.

Описание

Product details

SIZE	60
PITCH	3/4"
INSIDE WIDTH	1/2"
ROLLER DIA	.469"
TOOTH WIDTH (T)	0.459

(Dimension : inch)

Outside Dia Do	Pitch Dia Dp	Length Thru Bore	Sprocket No.		Finished Bores Includes Keyway and Setscrew	Weight Lbs. (App.)
Outside Dia Do	Pitch Dia Dp	BL	Type	Teeth	Finished Bores Includes Keyway and Setscrew	Weight Lbs. (App.)
2.511	2.193	1-1/4	FB60B	9	5/8, 3/4, 7/8, 1	0.6
2.759	2.427	1-1/4		10	5/8, 3/4, 7/8, 1	0.7
3.005	2.663	1-1/4		11	3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4	0.9
3.249	2.898	1-1/4		12	3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4	1.3
3.493	3.134	1-1/4		13	3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2	1.3
3.736	3.371	1-1/4		14	3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2	1.6
3.978	3.608	1-1/4		15	3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-5/8, 1-3/4	1.7
4.220	3.845	1-1/4		16	3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-5/8, 1-3/4, 1-15/16	2.1
4.462	4.082	1-1/4		17	1, 1-1/8, 1-3/16, 1-1/4, 1-3/8,1-7/16, 1-1/2, 1-5/8, 1-3/4, 1-15/16	2.4
4.703	4.319	1-1/4		18	1, 1-1/8, 1-3/16, 1-1/4, 1-3/8,1-7/16, 1-1/2, 1-5/8, 1-3/4, 1-15/16	2.6
4.945	4.557	1-1/4		19	1, 1-1/8, 1-3/16, 1-1/4, 1-3/8,1-7/16, 1-1/2, 1-5/8, 1-3/4, 1-15/16	3.4
5.186	4.794	1-1/4		20	1, 1-1/8, 1-3/16, 1-1/4, 1-3/8,1-7/16, 1-1/2, 1-5/8, 1-3/4, 1-15/16	3.9
5.426	5.033	1-1/4		21	1, 1-1/8, 1-3/16, 1-1/4, 1-3/8,1-7/16, 1-1/2, 1-5/8, 1-3/4, 1-15/16	4.4
5.666	5.270	1-1/4		22	1, 1-1/8, 1-3/16, 1-1/4, 1-3/8,1-7/16, 1-1/2, 1-5/8, 1-3/4, 1-15/16	4.7
5.907	5.508	1-1/4		23	1, 1-1/8, 1-3/16, 1-1/4, 1-3/8,1-7/16, 1-1/2, 1-5/8, 1-3/4, 1-15/16	5.0
6.147	5.746	1-1/4		24	1, 1-1/8, 1-3/16, 1-1/4, 1-3/8,1-7/16, 1-1/2, 1-5/8, 1-3/4, 1-15/16	5.3
6.387	5.984	1-1/4		25	1, 1-1/8, 1-3/16, 1-1/4, 1-3/8,1-7/16, 1-1/2, 1-5/8, 1-3/4, 1-15/16	5.4
6.627	6.222	1-1/4		26	1, 1-1/8, 1-3/16, 1-1/4, 1-3/8,1-7/16, 1-1/2, 1-5/8, 1-3/4, 1-15/16	5.8
6.867	6.461	1-1/4		27	1, 1-1/8, 1-3/16, 1-1/4, 1-3/8,1-7/16, 1-1/2, 1-5/8, 1-3/4, 1-15/16	6.3
7.106	6.698	1-1/4		28	1, 1-1/8, 1-3/16, 1-1/4, 1-3/8,1-7/16, 1-1/2, 1-5/8, 1-3/4, 1-15/16	6.4
7.346	6.937	1-1/4		29	1, 1-1/8, 1-3/16, 1-1/4, 1-3/8,1-7/16, 1-1/2, 1-5/8, 1-3/4, 1-15/16	6.9
7.586	7.175	1-1/4		30	1, 1-1/8, 1-3/16, 1-1/4, 1-3/8,1-7/16, 1-1/2, 1-5/8, 1-3/4, 1-15/16	7.1
7.826	7.413	1-1/4		31	1, 1-1/8, 1-3/16, 1-1/4, 1-3/8,1-7/16, 1-1/2, 1-5/8, 1-3/4, 1-15/16	7.4
8.065	7.652	1-1/4		32	1, 1-1/8, 1-3/16, 1-1/4, 1-3/8,1-7/16, 1-1/2, 1-5/8, 1-3/4, 1-15/16	7.8
8.305	7.890	1-1/4		33	1, 1-1/8, 1-3/16, 1-1/4, 1-3/8,1-7/16, 1-1/2, 1-5/8, 1-3/4, 1-15/16	8.2
8.544	8.129	1-1/4		34	1, 1-1/8, 1-3/16, 1-1/4, 1-3/8,1-7/16, 1-1/2, 1-5/8, 1-3/4, 1-15/16	8.5
8.783	8.367	1-1/4		35	1, 1-1/8, 1-3/16, 1-1/4, 1-3/8,1-7/16, 1-1/2, 1-5/8, 1-3/4, 1-15/16	8.8
9.023	8.606	1-1/4		36	1, 1-1/8, 1-3/16, 1-1/4, 1-3/8,1-7/16, 1-1/2, 1-5/8, 1-3/4, 1-15/16, 2, 2-3/16, 2-7/16	9.2
9.262	8.844	1-1/4		37	1, 1-1/8, 1-3/16, 1-1/4, 1-3/8,1-7/16, 1-1/2, 1-5/8, 1-3/4, 1-15/16, 2, 2-3/16, 2-7/16	9.9
9.501	9.083	1-1/4		38	1, 1-1/8, 1-3/16, 1-1/4, 1-3/8,1-7/16, 1-1/2, 1-5/8, 1-3/4, 1-15/16, 2, 2-3/16, 2-7/16	10.5
9.740	9.321	1-1/4		39	1, 1-1/8, 1-3/16, 1-1/4, 1-3/8,1-7/16, 1-1/2, 1-5/8, 1-3/4, 1-15/16, 2, 2-3/16, 2-7/16	10.9
9.980	9.560	1-1/4		40	1, 1-1/8, 1-3/16, 1-1/4, 1-3/8,1-7/16, 1-1/2, 1-5/8, 1-3/4, 1-15/16, 2, 2-3/16, 2-7/16	11.2
10.219	9.798	1-1/4		41	1, 1-1/8, 1-3/16, 1-1/4, 1-3/8,1-7/16, 1-1/2, 1-5/8, 1-3/4, 1-15/16, 2, 2-3/16, 2-7/16	11.8
10.458	10.037	1-1/4		42	1, 1-1/8, 1-3/16, 1-1/4, 1-3/8,1-7/16, 1-1/2, 1-5/8, 1-3/4, 1-15/16, 2, 2-3/16, 2-7/16	12.4
10.697	10.275	1-1/4		43	1, 1-1/8, 1-3/16, 1-1/4, 1-3/8,1-7/16, 1-1/2, 1-5/8, 1-3/4, 1-15/16, 2, 2-3/16, 2-7/16	13.0
10.937	10.514	1-1/4		44	1, 1-1/8, 1-3/16, 1-1/4, 1-3/8,1-7/16, 1-1/2, 1-5/8, 1-3/4, 1-15/16, 2, 2-3/16, 2-7/16	13.5
