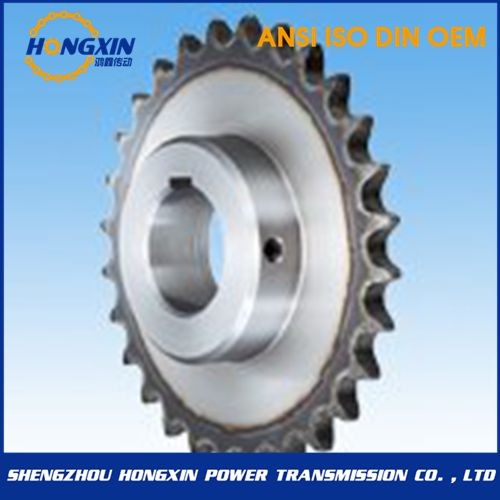

Звездочка с готовым отверстием NK 50B

Продукт Товар:HXPT-148

Модель: Звездочка с готовым отверстием NK 50B

Материал: C45, нержавеющая сталь и т. д.

Обработка поверхности: закаленные зубы, черный оксид, оцинковка, электрофорез и т. д.

Упаковка: стандартный экспортный ящик, индивидуальная упаковка. (нейтральный или цветной ящик) доступный.

Описание

Product details

SIZE	50
PITCH	5/8"
INSIDE WIDTH	3/8"
ROLLER DIA	.400"
TOOTH WIDTH (T)	0.343

(Dimension : inch)

Outside Dia Do	Pitch Dia Dp	Length Thru Bore	Sprocket No.		Finished Bores Includes Keyway and Setscrew	Weight Lbs. (App.)
Outside Dia Do	Pitch Dia Dp	BL	Type	Teeth	Finished Bores Includes Keyway and Setscrew	Weight Lbs. (App.)
2.093	1.828	1	FB50B	9	5/8, 3/4	0.30
2.299	2.023	1		10	5/8, 3/4, 7/8, 1	0.30
2.504	2.219	1		11	5/8, 3/4, 7/8, 1	0.60
2.708	2.415	1		12	5/8, 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4	0.70
2.911	2.612	1		13	5/8, 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4	0.80
3.113	2.809	1		14	5/8, 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4	1.00
3.315	3.006	1		15	5/8, 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4 1-3/8, 1-7/16	1.20
3.517	3.204	1		16	5/8, 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2	1.45
3.718	3.401	1		17	5/8, 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2	1.60
3.919	3.599	1		18	5/8, 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2	1.90
4.121	3.798	1		19	5/8, 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2	2.00
4.321	3.995	1		20	5/8, 3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2	2.10
4.522	4.194	1		21	3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2	2.25
4.722	4.392	1		22	3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2	2.40
4.923	4.590	1		23	3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2	2.50
5.123	4.788	1-1/4		24	3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2	3.00
5.323	4.987	1-1/4		25	3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2	3.10
5.523	5.185	1-1/4		26	3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2	3.30
5.723	5.384	1-1/4		27	3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2	3.46
5.922	5.582	1-1/4		28	3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2	3.60
6.122	5.781	1-1/4		29	3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2	3.78
6.321	5.979	1-1/4		30	3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2	3.90
6.521	6.178	1-1/4		31	3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-3/4, 1-15/16	4.46
6.721	6.376	1-1/4		32	3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-3/4, 1-15/16	4.70
6.921	6.575	1-1/4		33	3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-3/4, 1-15/16	4.92
7.120	6.774	1-1/4		34	3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-3/4, 1-15/16	5.06
7.319	6.973	1-1/4		35	3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-3/4, 1-15/16	5.30
7.519	7.171	1-1/4		36	3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-3/4, 1-15/16	5.50
7.718	7.370	1-1/4		37	3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-3/4, 1-15/16	5.62
7.918	7.569	1-1/4		38	3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-3/4, 1-15/16	5.80
8.117	7.768	1-1/4		39	3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-3/4, 1-15/16	6.02
8.316	7.966	1-1/4		40	3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-3/4, 1-15/16	6.20
8.516	8.165	1-1/4		41	3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-3/4, 1-15/16	6.45
8.715	8.364	1-1/4		42	3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-3/4, 1-15/16	6.68
8.914	8.563	1-1/4		43	3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-3/4, 1-15/16	6.99
9.114	8.761	1-1/4		44	3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-3/4, 1-15/16	7.30
9.313	8.96	1-1/4		45	3/4, 7/8, 1, 1-1/8, 1-3/16, 1-1/4, 1-3/8, 1-7/16, 1-1/2, 1-3/4, 1-15/16	8.00
