Продукт Товар:HXPT-176

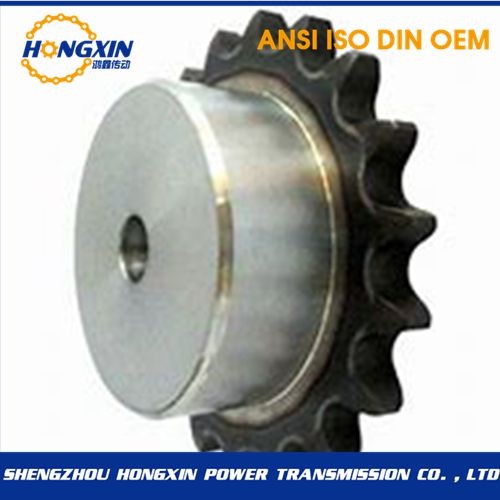

Model:NK 2082B Double Pitch Sprocket
Material: C45, stainless steel, etc.
Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc
Package:Standard export case, individual package (neutral or colorbox) available.
|
|
| No. Teeth |
Outside Diameter Do |
Pitch Diameter Dp |
Bore (Inches) | Hub (Inches) |
Weight Lbs. (Approx.) |
||
| Single Duty |
Stock d |
Rec. Max. |
Diameter BD |
Length Thru BL |
|||
| 8 | 6.030 | 5.226 | 1 | 2 17/64 | 3 51/64 | 1 3/4 | 6.4 |
| 9 | 6.700 | 5.848 | 2 3/4 | 4 1/4 | 8.2 | ||
| 10 | 7.360 | 6.472 | 9.2 | ||||
| 11 | 8.010 | 7.099 | 10.1 | ||||
| 12 | 8.660 | 7.727 | 11.2 | ||||
| 13 | 9.310 | 8.357 | 1 1/4 | 3 1/4 | 4 3/4 | 2 | 15.0 |
| 14 | 9.960 | 8.988 | 15.8 | ||||
| 15 | 10.610 | 9.620 | 1 3/16 | 17.8 | |||
| 16 | 11.250 | 10.252 | 19.3 | ||||
| 17 | 11.900 | 10.885 | 21.4 | ||||
| 18 | 12.540 | 11.518 | 22.9 | ||||
| 19 | 13.190 | 12.151 | 24.4 | ||||
| 20 | 13.830 | 12.785 | 26.7 | ||||
| 21 | 14.470 | 13.419 | 1 1/4 | 28.4 | |||
| 22 | 15.110 | 14.053 | 39.6 | ||||
| 23 | 15.750 | 14.688 | 32.2 | ||||
| 24 | 16.390 | 15.323 | 34.9 | ||||
| 25 | 17.030 | 15.958 | 37.8 | ||||
| 26 | 17.670 | 16.593 | 3 1/2 | 5 1/4 | 41.5 | ||
| 28 | 18.950 | 17.863 | 47.7 | ||||
| 30 | 20.230 | 19.134 | 54.5 | ||||
