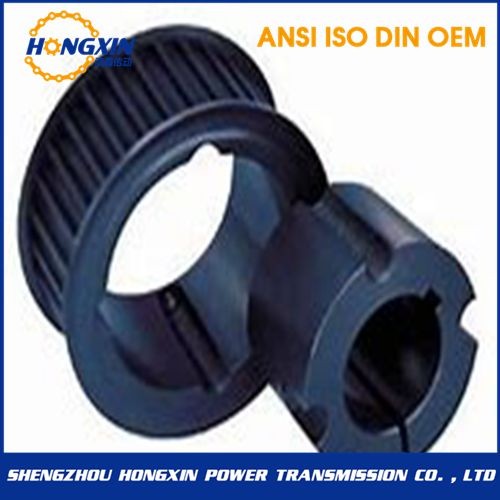

HTP 8M-50 Taper Bore Timing Pulley

Продукт Товар:HXPT-277

Model:HTP 8M-50 Taper Bore Timing Pulley

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

8M
PITCH - 8 mm
FOR BELT WIDTH - 50 mm

Code	Type	Material	Teeth	Buss	Hole max	dp	de	Df	Dm	Di	F	L	R	n◦ flange
Code	Type	Material	Teeth	Buss	Hole max	dp	de	Df	Dm	Di	F	L	R	n◦ flange
TL 28 8M 50	16F	St	28	1210	32	71,30	70,08	75		50	60	25	35	312
TL 30 8M 50	16F	St	30	1615	42	76,39	75,13	83		58	60	38	22	314
TL 32 8M 50	16F	St	32	1615	42	81,49	80,16	87		63	60	38	22	315
TL 34 8M 50	16F	St	34	1615	42	86,58	85,21	91		65	60	38	22	316
TL 36 8M 50	16F	St	36	1615	42	91,67	90,30	98		68	60	38	22	319
TL 38 8M 50	16F	St	38	1615	42	96,77	95,39	103		72	60	38	22	320
TL 40 8M 50	18F	St	40	2012	50	101,86	100,49	106		80	60	32	14	321
TL 44 8M 50	18F	St	44	2012	50	112,05	110,67	119		86	60	32	14	325
TL 48 8M 50	18F	St	48	2012	50	122,23	120,86	127		95	60	32	14	327
TL 56 8M 50	18F	St	56	2517	60	142,60	141,23	148		116	60	45	7.5	333
TL 64 8M 50	18F	St	64	2517	60	162,97	161,60	168		136	60	45	7.5	338
TL 72 8M 50	19F	St	72	2517	60	183,35	181,97	192	125	158	60	45	7.5	340
TL 80 8M 50	18	GG	80	3020	75	203,72	202,35			180	60	51	4.5
TL 90 8M 50	19	GG	90	3020	75	229,18	227,81		160	204	60	51	4.5
TL112 8M 50	19	GG	112	3020	75	285,21	283,83		170	254	60	51	4.5
TL144 8M 50	20	GG	144	3020	75	366,69	365,32		170	336	60	51	4.5
TL 168 8M 50	14	GG	168	3525	90	427.81	426.44		198	395	60	65	2.5
TL 192 8M 50	14	GG	192	3525	90	488.92	487.55		198	455	60	65	2.5
