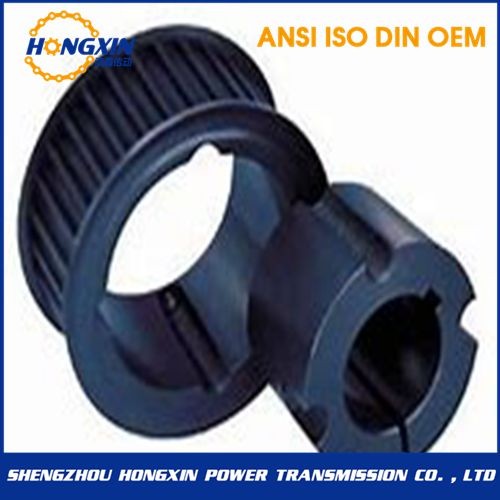

HTP 8M-30 Taper Bore Timing Pulley

Продукт Товар:HXPT-276

Model:HTP 8M-30 Taper Bore Timing Pulley

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

8M
PITCH - 8 mm
FOR BELT WIDTH - 30 mm

Code	Type	Material	Teeth	Buss	Hole max	dp	de	Df	Dm	Di	F	L	R	n◦ flange
Code	Type	Material	Teeth	Buss	Hole max	dp	de	Df	Dm	Di	F	L	R	n◦ flange
TL 22 8M 30	16F	St	22	1008	25	56,02	54,65	60		37	38	22	16	308
TL 24 8M 30	16F	St	24	1108	25	61,11	59,74	66		44	38	22	16	310
TL 26 8M 30	16F	St	26	1108	25	66,21	64,84	71		44	38	22	16	311
TL 28 8M 30	16F	St	28	1210	32	71,30	70,08	75		50	38	25	13	312
TL 30 8M 30	15F	St	30	1615	42	76,39	75,13	83			38	38		314
TL 32 8M 30	15F	St	32	1615	42	81,49	80,16	87			38	38		315
TL 34 8M 30	15F	St	34	1615	42	86,58	85,21	91			38	38		316
TL 36 8M 30	15F	St	36	1615	42	91,67	90,30	98			38	38		319
TL 38 8M 30	15F	St	38	1615	42	96,77	95,39	103			38	38		320
TL 40 8M 30	15F	St	40	1615	42	101,86	100,49	106			38	38		321
TL 44 8M 30	18F	St	44	2012	50	112,05	110,67	119		86	38	32	3	325
TL 48 8M 30	18F	St	48	2012	50	122,23	120,86	127		90	38	32	3	327
TL 56 8M 30	18F	St	56	2012	50	142,60	141,23	148		110	38	32	3	333
TL 64 8M 30	10F	St	64	2517	60	162,97	161,60	168	125		38	45	7	338
TL 72 8M 30	11F	St	72	2517	60	183,35	181,97	192	125	158	38	45	7	340
TL 80 8M 30	11	GG	80	2517	60	203,72	202,35		125	180	38	45	7
TL 90 8M 30	11	GG	90	2517	60	229,18	227,81		125	204	38	45	7
TL 112 8M 30	12	GG	112	2517	60	285,21	283,83		125	254	38	45	7
TL 144 8M 30	12	GG	144	2517	60	366,69	365,32		125	336	38	45	7
