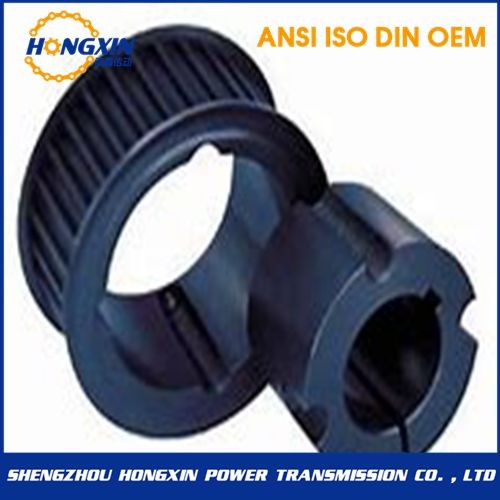

HTP 8M-20 Taper Bore Timing Pulley

Продукт Товар:HXPT-275

Model:HTP 8M-20 Taper Bore Timing Pulley

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

8M
PITCH - 8 mm
FOR BELT WIDTH - 20 mm

Code	Type	Material	Teeth	Buss	Hole max	dp	de	Df	Dm	Di	F	L	R	n◦ flange
Code	Type	Material	Teeth	Buss	Hole max	dp	de	Df	Dm	Di	F	L	R	n◦ flange
TL 22 8M 20	16F	St	22	1008	25	56,02	54,65	60		37	28	22	6	308
TL 24 8M 20	16F	St	24	1108	25	61,11	59,74	66		44	28	22	6	310
TL 26 8M 20	16F	St	26	1108	25	66,21	64,84	71		45	28	22	6	311
TL 28 8M 20	16F	St	28	1108	25	71,30	70,08	75		50	28	22	6	312
TL 30 8M 20	16F	St	30	1108	25	76,39	75,13	83		58	28	22	6	314
TL 32 8M 20	16F	St	32	1610	42	81,49	80,16	87		63	28	25	3	315
TL 34 8M 20	16F	St	34	1610	42	86,58	85,21	91		64	28	25	3	316
TL 36 8M 20	16F	St	36	1610	42	91,67	90,30	98		68	28	25	3	319
TL 38 8M 20	16F	St	38	1610	42	96,77	95,39	103		72	28	25	3	320
TL 40 8M 20	16F	St	40	1610	42	101,86	100,49	106		76	28	25	3	321
TL 44 8M 20	10F	St	44	2012	50	112,05	110,67	119	92		28	32	4	325
TL 48 8M 20	10F	St	48	2012	50	122,23	120,86	127	96		28	32	4	327
TL 56 8M 20	10F	St	56	2012	50	142,60	141,23	148	110		28	32	4	333
TL 64 8M 20	11F	St	64	2012	50	162,97	161,60	168	110	137	28	32	4	338
TL 72 8M 20	11F	St	72	2012	50	183,35	181,97	192	110	158	28	32	4	340
TL 80 8M 20	11	GG	80	2012	50	203,72	202,35		110	180	28	32	4
TL 90 8M 20	11	GG	90	2012	50	229,18	227,81		110	204	28	32	4
