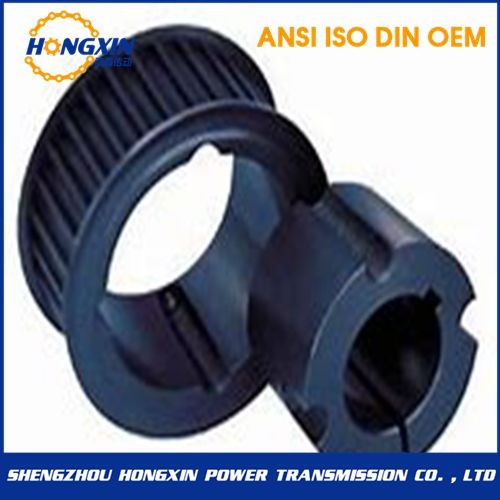

HTP 14M-85 Taper Bore Timing Pulley

Продукт Товар:HXPT-280

Model:HTP 14M-85 Taper Bore Timing Pulley

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

14M
PITCH - 14 mm
FOR BELT WIDTH - 85 mm

Code	Type	Material	Teeth	Buss	Hole max	dp	de	Df	Dm	Di	F	L	R	n◦ flange
Code	Type	Material	Teeth	Buss	Hole max	dp	de	Df	Dm	Di	F	L	R	n◦ flange
TL 28 14M 85	18F	St	28	2517	60	124,78	122,12	127		98	102	45	28,5	400
TL 30 14M 85	18F	St	30	2517	60	133,69	130,99	138		100	102	45	28,5	401
TL 32 14M 85	18F	St	32	2517	60	142,60	139,88	154		108	102	45	28,5	403
TL 34 14M 85	18F	St	34	2517	60	151,52	148,79	160		110	102	45	28,5	404
TL 36 14M 85	18F	St	36	3020	75	160,43	157,68	168		125	102	51	25,5	405
TL 38 14M 85	18F	St	38	3020	75	169,34	166,60	183		130	102	51	25,5	406
TL 40 14M 85	18F	St	40	3020	75	178,25	175,49	188		138	102	51	25,5	407
TL 44 14M 85	18F	St	44	3030	75	196,08	193,28	211		155	102	76	13	411
TL 48 14M 85	18F	St	48	3030	75	213,90	211,11	226		170	102	76	13	412
TL 56 14M 85	18F	GG	56	3525	90	249,55	246,76	256		210	102	65	18,5	416
TL 64 14M 85	19F	GG	64	3525	90	285,21	282,41	296	190	240	102	65	18,5	418
TL 72 14M 85	19	GG	72	3525	90	320,86	318,06		190	280	102	65	18,5
TL 80 14M 85	20	GG	80	3525	90	356,51	353,71		190	315	102	65	18,5
TL 90 14M 85	20	GG	90	3525	90	401.07	398.28		190	360	102	65	18,5
TL 112 14M 85	20	GG	112	3525	90	499.11	496.32		190	457	102	65	18,5
TL 144 14M 85	20	GG	144	3525	90	641.71	638.92		190	600	102	65	18,5
TL 168 14M 85	20	GG	168	3525	90	748.66	745.87		190	706	102	65	18,5
TL 192 14M 85	20	GG	192	4040	100	855.62	852.82		230	813	102	102
