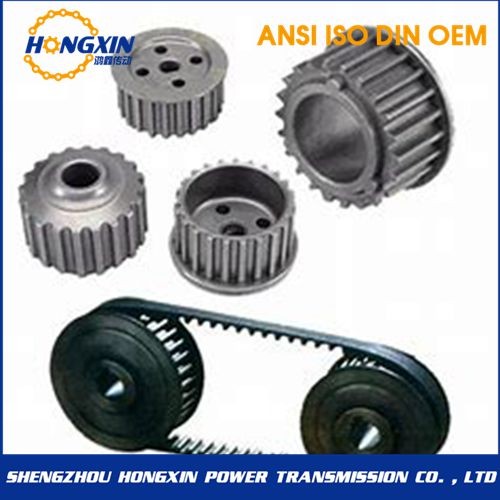

HTP 14M-115 Timing Pulley

Продукт Товар:HXPT-267

Model:HTP 14M-115 Timing Pulley

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

14M
PITCH - 14 mm
FOR BELT WIDTH - 115 mm

Code	Type	Material	Teeth	dp	de	Df	Dm	Di	F	L	d	n◦ flange
Code	Type	Material	Teeth	dp	de	Df	Dm	Di	F	L	d	n◦ flange
28 14M 115	2F	St	28	124,78	122,12	127	100		133	148	32	400
3014M 115	2F	St	30	133,69	130,99	138	100		133	148	32	401
32 14M 115	2F	St	32	142,60	139,88	154	100		133	148	32	403
34 14M115	2F	St	34	151,52	148,79	160	100		133	148	32	404
36 14M 115	2F	St	36	160,43	157,68	168	120		133	148	32	405
38 14M 115	2F	St	38	169,34	166,60	183	120		133	148	32	406
40 14M 115	2F	St	40	178,25	175,49	188	135		133	148	32	407
44 14M 115	2F	St	44	196,08	193,28	211	140		133	148	32	411
48 14M 115	2F	St	48	213,90	211,11	226	150		133	148	32	412
56 14M 115	7F	GG	56	249,55	246,76	256	150		133	148	32	416
64 14M 115	7F	GG	64	285,21	282,41	296	150	240	133	133	32	418
72 14M 115	8	GG	72	320,86	318,06		150	278	133	133	32
80 14M 115	8	GG	80	356,51	353,71		150	314	133	133	32
90 14M 115	8	GG	90	401,07	398,28		150	358	133	133	32
112 14M 115	8	GG	112	499,11	496,32		150	456	133	133	32
144 14M 115	8	GG	144	641,71	638,92		165	600	133	133	32
168 14M 115	8	GG	168	748,66	745,87		165	706	133	133	32
192 14M 115	8	GG	192	855,62	852,82		165	813	133	133	32
