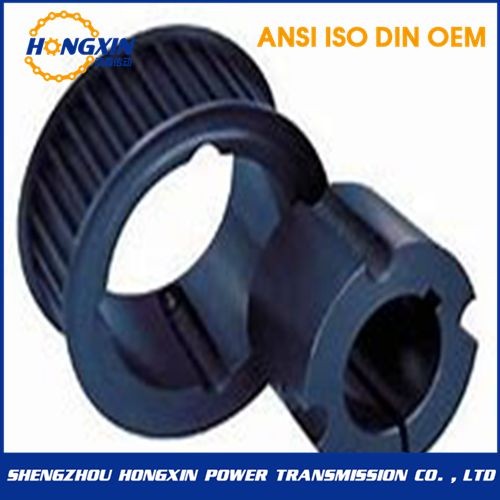

HTP 14M-115 Taper Bore Timing Pulley

Продукт Товар:HXPT-281

Model:HTP 14M-115 Taper Bore Timing Pulley

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

14M
PITCH - 14 mm
FOR BELT WIDTH - 115 mm

Code	Type	Material	Teeth	Buss	Hole max	dp	de	Df	Dm	Di	F	L	R	n◦ flange
Code	Type	Material	Teeth	Buss	Hole max	dp	de	Df	Dm	Di	F	L	R	n◦ flange
TL 28 14M 115	18F	St	28	2517	60	124,78	122,12	127		98	133	45	44	400
TL 30 14M 115	18F	St	30	2517	60	133,69	130,99	138		100	133	45	44	401
TL 32 14M 115	18F	St	32	2517	60	142,60	139,88	154		108	133	45	44	403
TL 34 14M 115	18F	St	34	2517	60	151,52	148,79	160		110	133	45	44	404
TL 36 14M 115	18F	St	36	3020	75	160,43	157,68	168		125	133	51	41	405
TL 38 14M 115	18F	St	38	3020	75	169,34	166,60	183		130	133	51	41	406
TL 40 14M 115	18F	St	40	3020	75	178,25	175,49	188		138	133	51	41	407
TL 44 14M 115	18F	St	44	3030	75	196,08	193,28	211		155	133	76	28,5	411
TL 48 14M 115	18F	St	48	3030	75	213,90	211,11	226		170	133	76	28,5	412
TL 56 14M 115	18F	GG	56	3535	90	249,55	246,76	256		210	133	89	22	416
TL 64 14M 115	19F	GG	64	3535	90	285,21	282,41	296	190	240	133	89	22	418
TL 72 14M 115	19	GG	72	3535	90	320,86	318,06		190	280	133	89	22
TL 80 14M 115	20	GG	80	3535	90	356,51	353,71		190	315	133	89	22
TL 90 14M 115	20	GG	90	3525	90	401.07	398.28		190	360	133	89	22
TL 112 14M 115	20	GG	112	3525	90	499.11	496.32		190	457	133	89	22
TL 144 14M 115	20	GG	144	4040	100	641.71	638.92		230	600	133	102	15.5
TL 168 14M 115	20	GG	168	4040	100	748.66	745.87		230	706	133	102	15.5
