Продукт Товар:HXPT-081

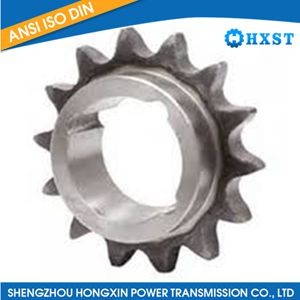

Model: 40B-1 Simplex Taper lock Sprocket
Material: C45, stainless steel, etc.
Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc
Package:Standard export case, individual package (neutral or colorbox) available.
40TL14.1008 Sprocket
for 1008 Taper Bushing
No.40 ANSI Sprocket
14 Teeth
For #40 Single Strand Chain with
1/2 Inch Pitch
5/16 Inch Roller Width
0.313 Inch Roller Diameter
0.283 Inch Sprocket Tooth Width(B1)
2.49 Inch Outside Diameter (Approximate)
2.247 Inch Pitch Diameter
1.81 Inch Hub Diameter(C)
0.88 Inch Total Length Through Bore(L)
