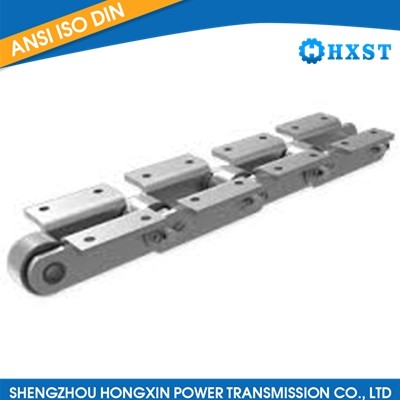

Sugar chain

Sugar chain is used for sugar production factory.It is a special Conveyor Chain.

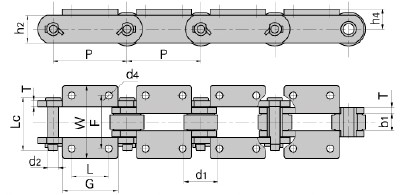

Chain no.	P	G	L	F	W	H4	D4
	mm	mm	mm	mm	mm	mm	mm
DH9063	152.4	114.3	76.2	111.13	165.86	44.45	14.3
DH2198	152.4	114.3	76.2	111.25	152.4	41.40	14.3

Chain no.	Roller diameter	Width between Inner plates	Pin diameter	Pin length	Plate depth	Plate thickness	Ultimate Tensile strength	Average Tensile strength	Weight per meter
D1 Max mm	B1 Min mm	D2 Max mm	Lc Max mm	H2 Max mm	T Max mm	Q Min Kn/lb	Qo Kn	Q Kg/m
DH9063	76.2	38.1	23.83	103.2	61.00	10.3	445.0/ 100000	489.0	27.5
DH2198	69.85	38.1	22.23	111.2	57.15	12.7	404.5/ 91000	445.0	27.9

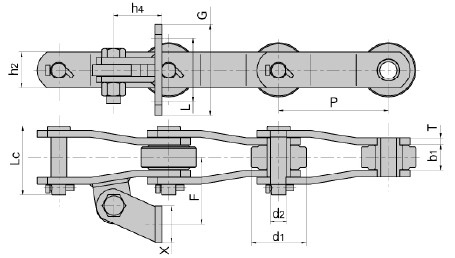

Chain no.	P	G	L	F	X	H4
	mm	mm	mm	mm	mm	mm
DH09060	152.4	114.3	86.2	88.9	50.8	111.25
DH1796	152.4	114.3	86.2	88.9	50.8	111.25

Chain no.	Roller diameter	Width between Inner plates	Pin diameter	Pin length	Plate depth	Plate thickness	Ultimate Tensile strength	Average Tensile strength
	D1 Max mm	B1 Min mm	D2 Max mm	Lc Max mm	H2 Max mm	T Max mm	Q Min Kn/lb	Qo Kn
DH09060	69.85	38.1	19.05	96.6	50.80	9.65	270/ 60740	297.0
DH1796	69.85	38.1	22.35	100.0	57.15	9.65	445/ 100100	489.5
