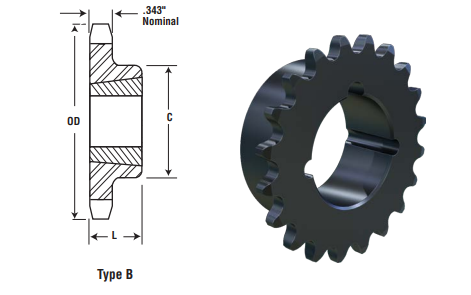

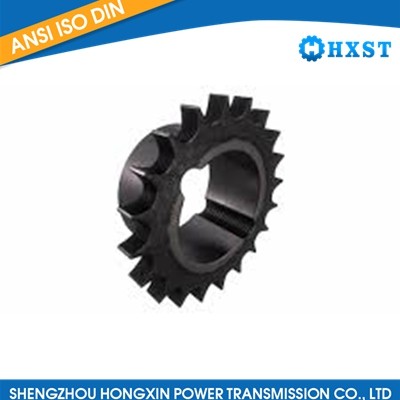

50B-1 Simplex Taper lock Sprocket

Product Item:HXST-082

Model: 50B-1 Simplex Taper lock Sprocket

Material: C45, stainless steel, etc.

Surface treatment:Teeth hardened, Black oxide, Zinc plated, Electrophoresis etc

Package:Standard export case, individual package (neutral or colorbox) available.

Description

50B-1 Simplex Taper lock Sprocket is a specific type of sprocket commonly used in power transmission systems. Here are some key features and characteristics of this sprocket:

Type: Simplex sprocket
Size: 50B-1 (indicating the pitch size and number of teeth)
Taper lock: It utilizes a taper lock bushing mechanism, which allows for easy installation and removal from a shaft without the need for keyway or set screws.
Material: Typically made from high-quality steel to ensure durability and strength.
Teeth: The sprocket has a specific number of teeth that engage with a corresponding chain to transmit power.
Pitch: The pitch size determines the spacing between the chain links and should match the pitch of the corresponding chain.
Simplex: Like other sprockets in the Simplex series, this sprocket follows a single strand design, meaning it has one row of teeth.
